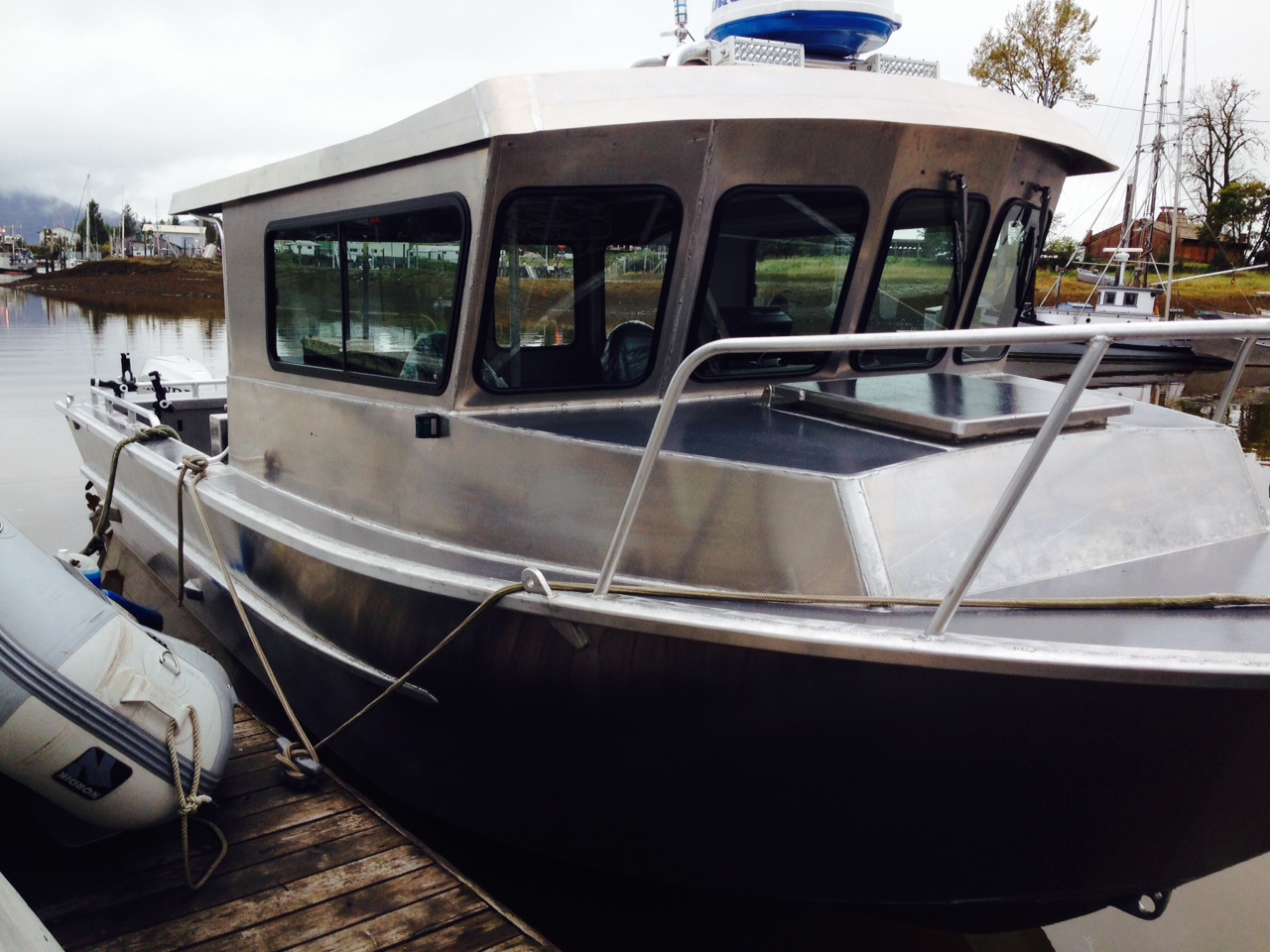

Open-Ocean,30 ft. Sport/Commercial Svendsen Aluminum Boat
Boat was originally planned for open-ocean, commercial rockfish and crab fishing, but could easily be adapted to many other uses

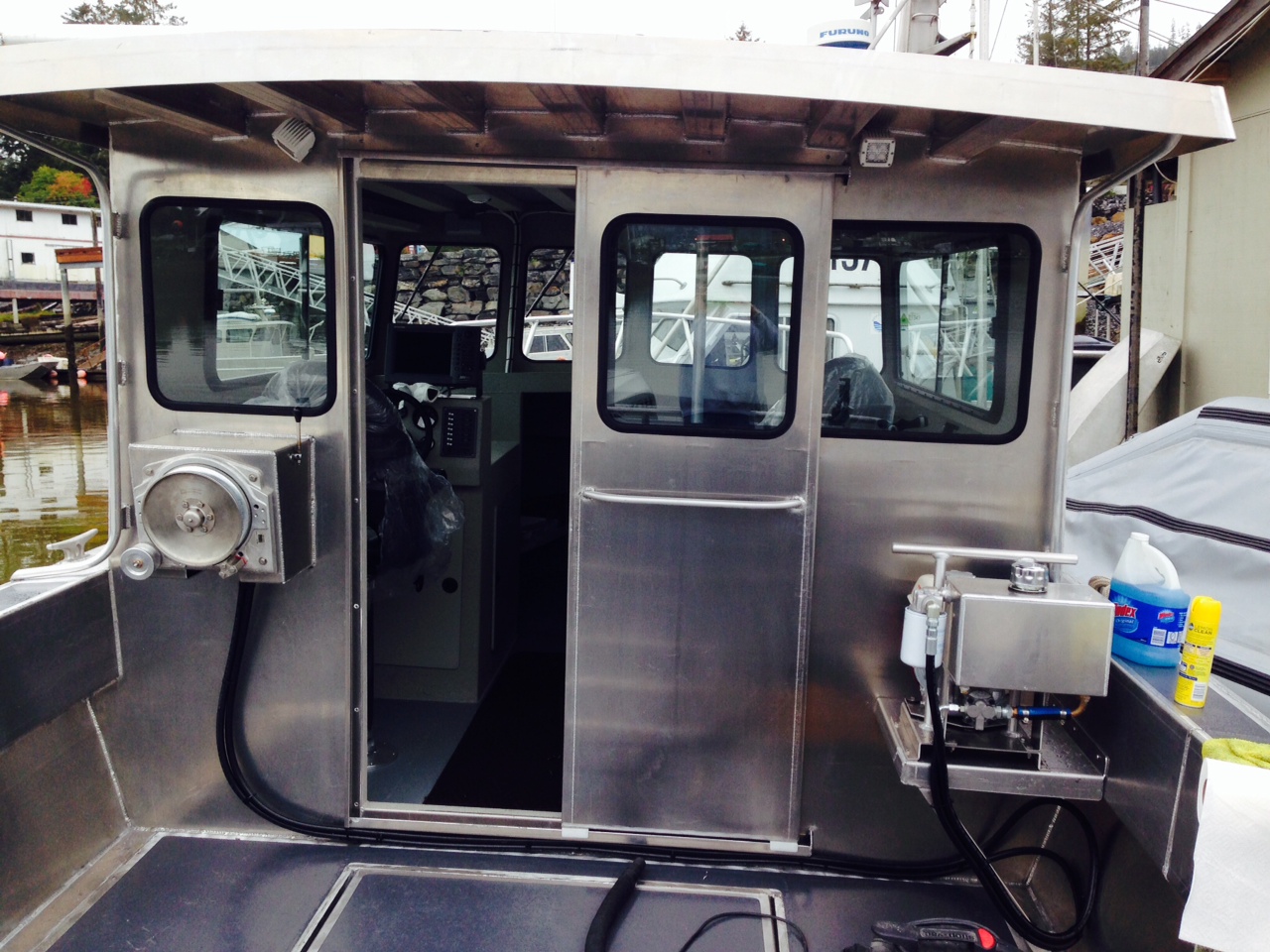

The davit "pulls out" from the roof from port side
Heavy aluminum boat, 29.5 foot registered length,
32 feet with outboard extension—standing room between stern and motors
Boat completed Oct. 2014,

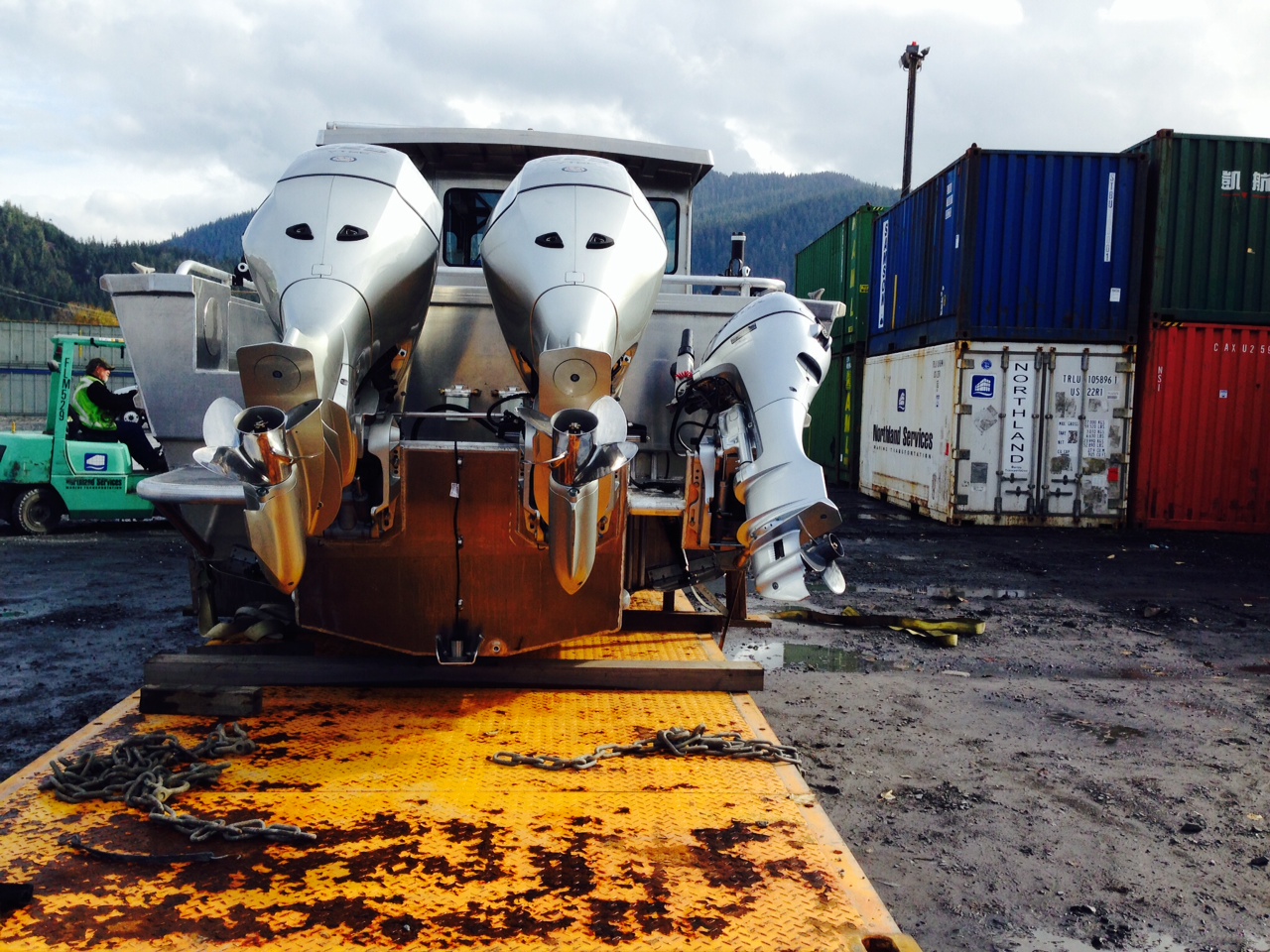

barged to Seattle, and then trucked to Port Orford, OR by common carrier, and placed on its trailer via hoist

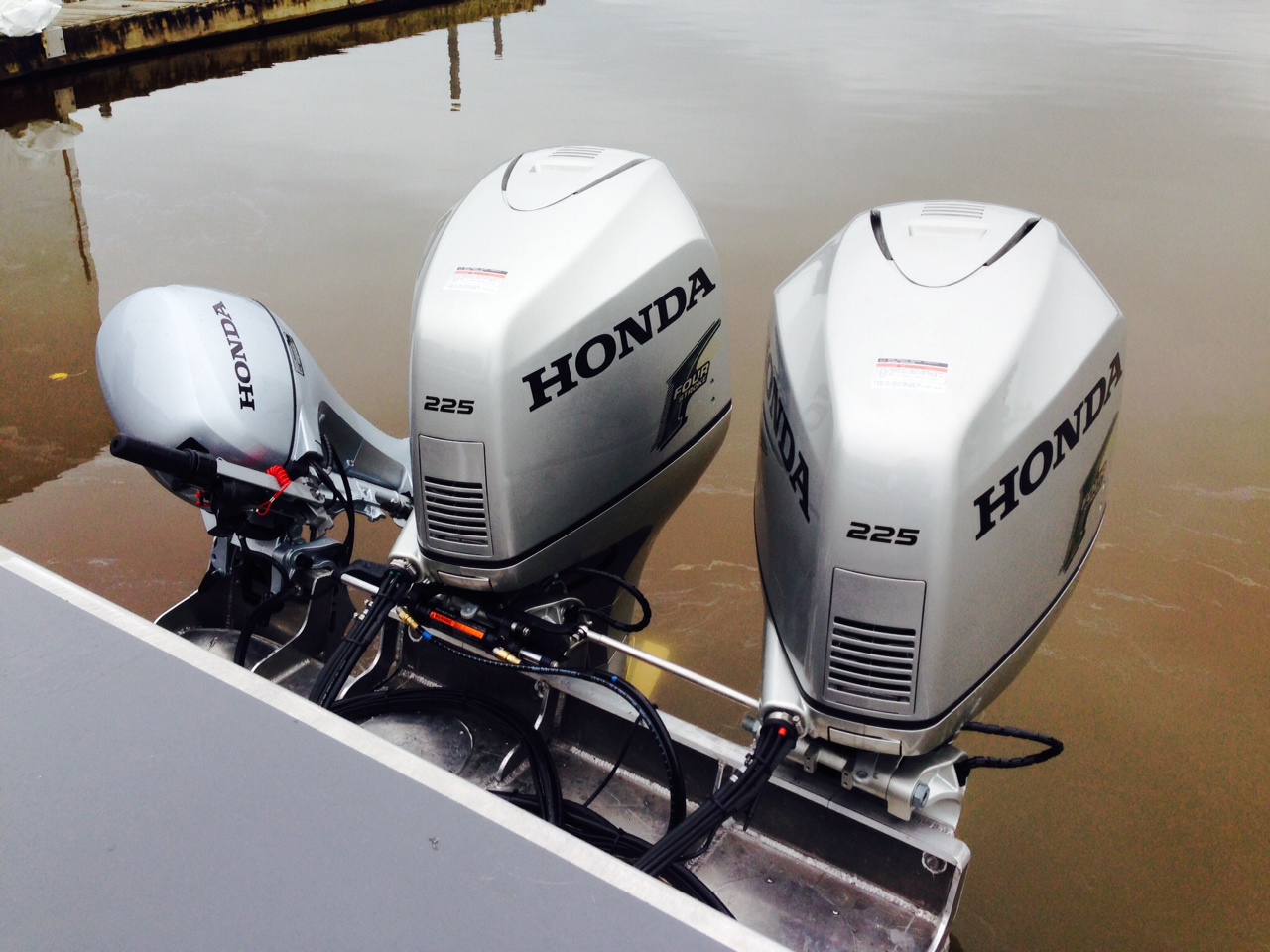

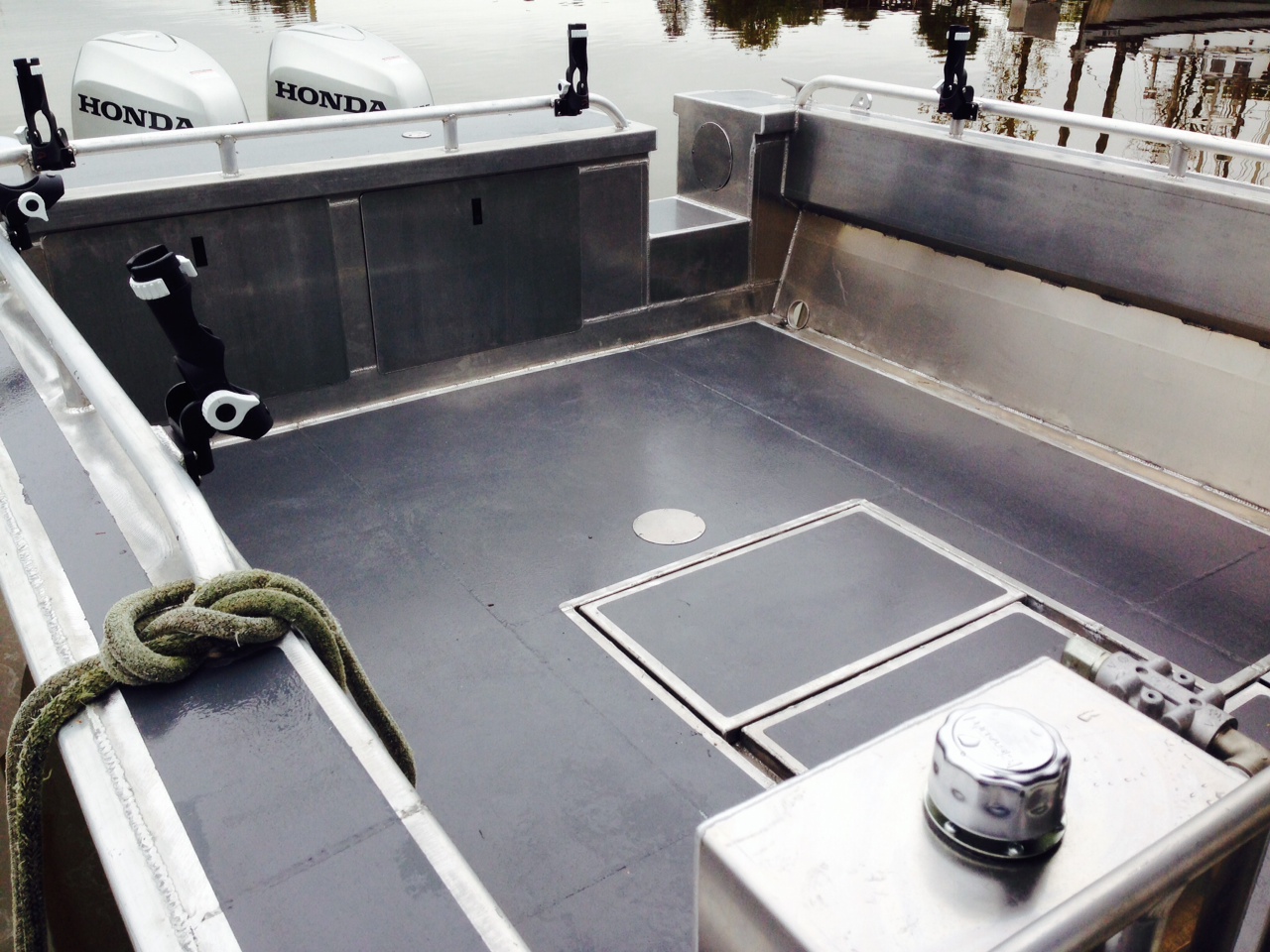

Beam 10’6" - Has twin 225 HP Honda engines with tie bar, approximately 9
hours, with serious attention to proper break-in procedure. SS Props on the two main engines. The 9.9 HP Honda kicker has no known hours—no tie bar. Kicker can use main fuel tank or a provided, fully separate portable tank .

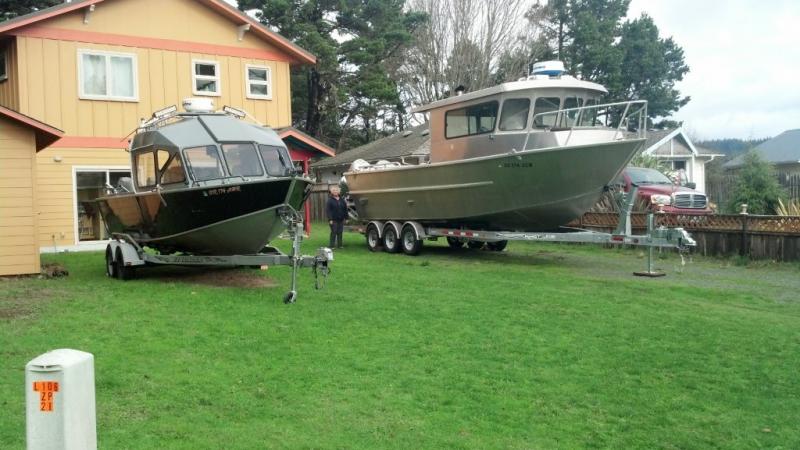

2014 King triple-axle trailer,, never been in water, less than 200 miles, Model #KBT12000

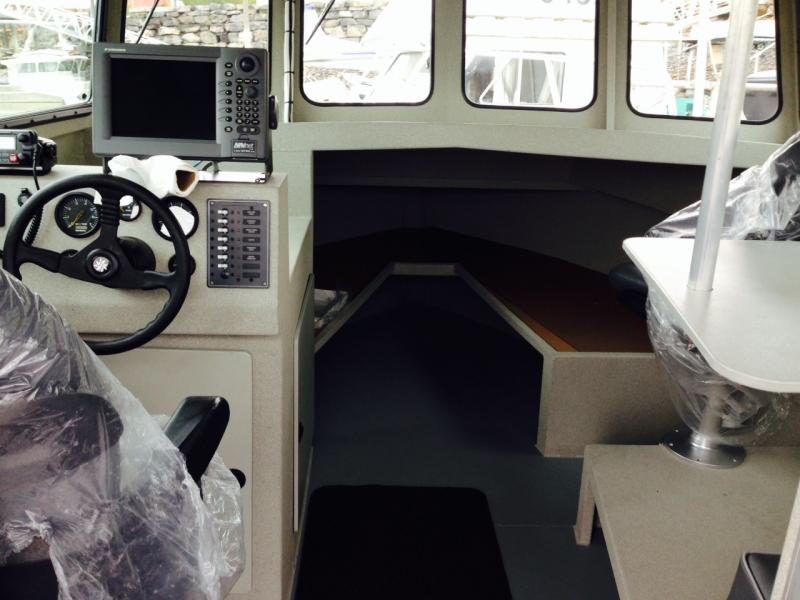

Furuno Nav Net integrated system of radar, GPA, fish finder
Icom M412 VHF with S.S. antenna and mount; second S.S. antenna also mounted.

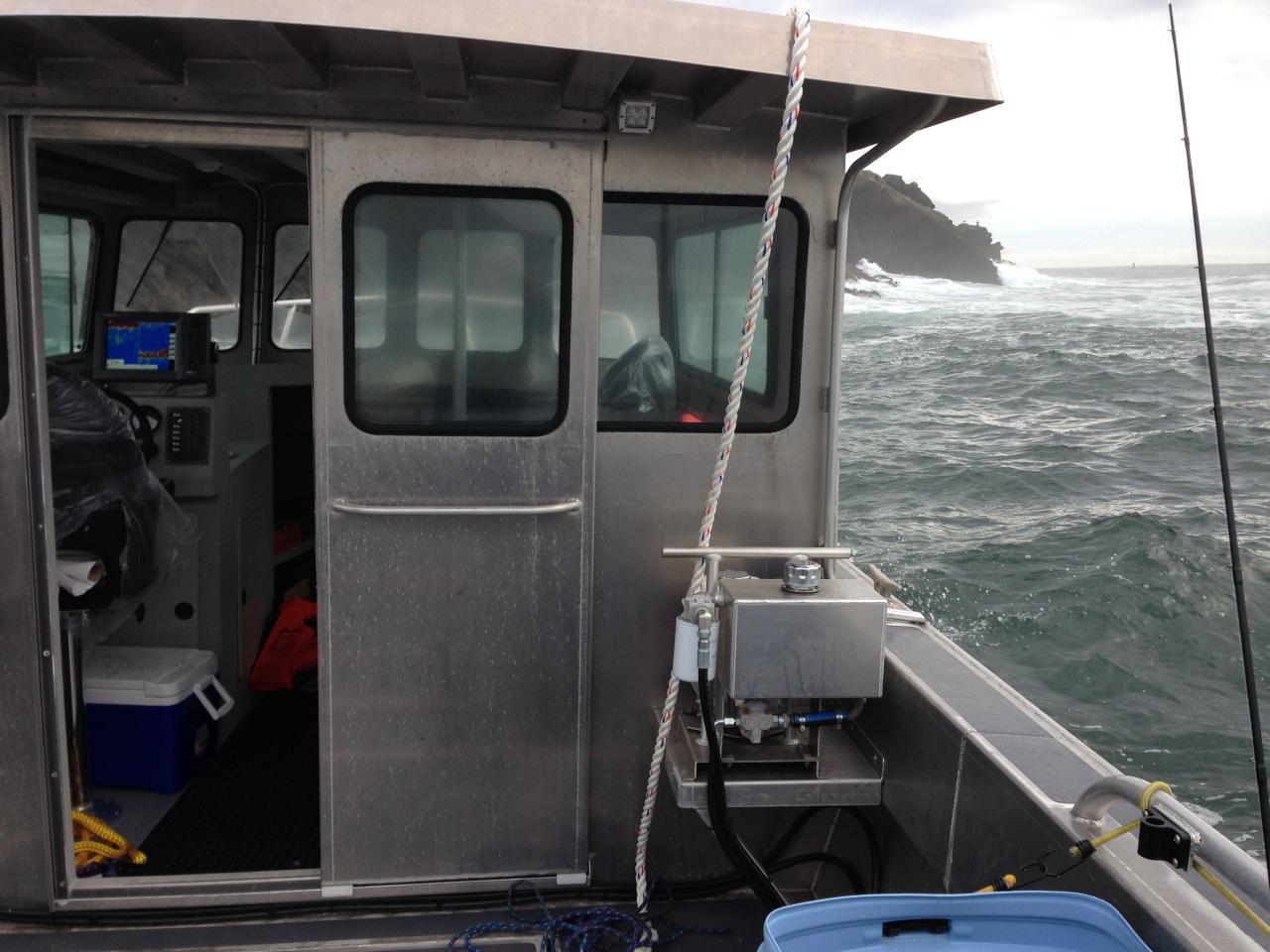

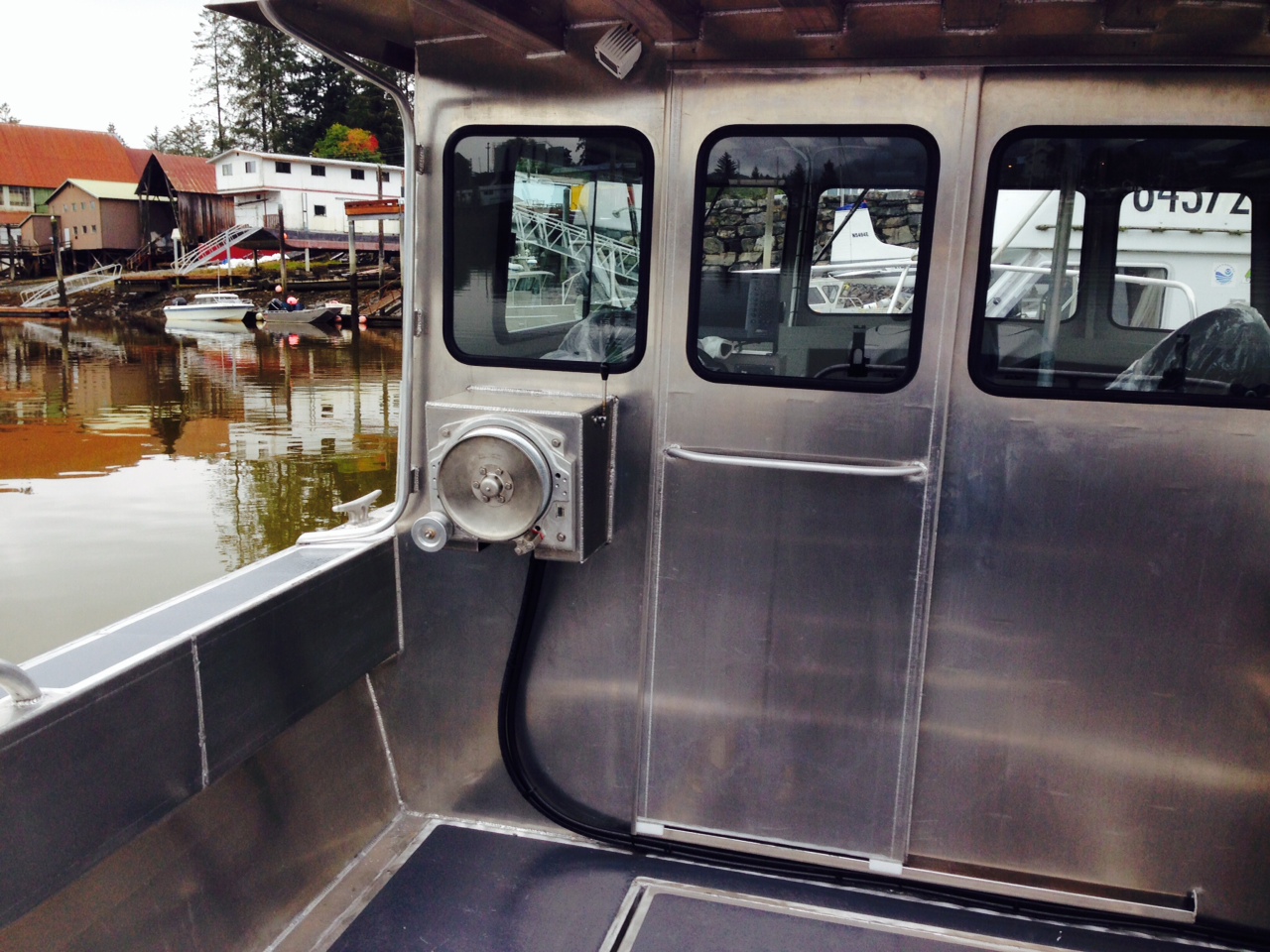

Has a "Honda Pac" hydraulic system for long lining or crabbing.
Wallas 30 DT diesel heater/cook top, never operated
Duel Sierra fuel filters
Two slider windows and six rubber insert windows
Two electric windshield wipers for two forward, aft windows.

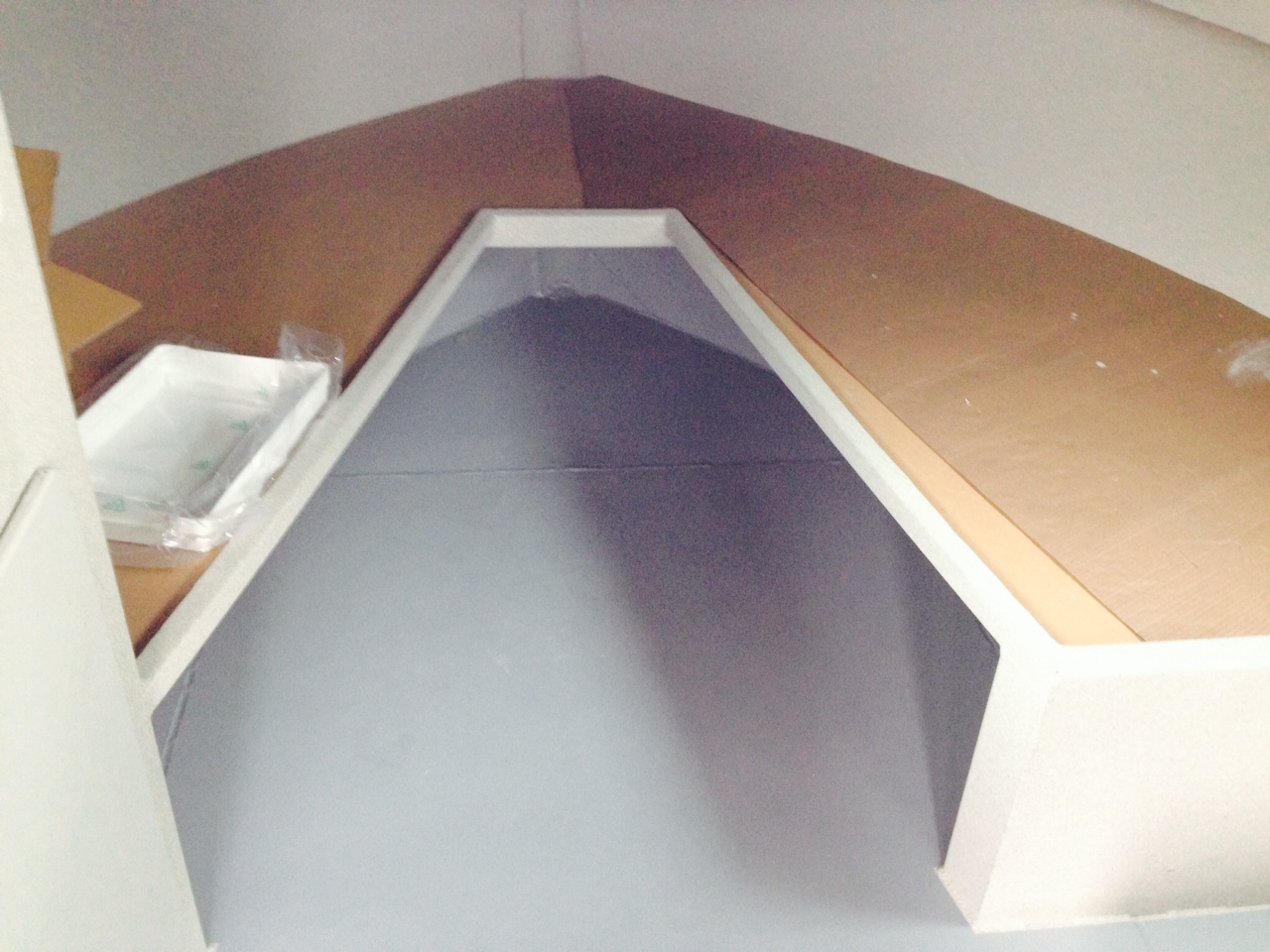

Hatch in bow.

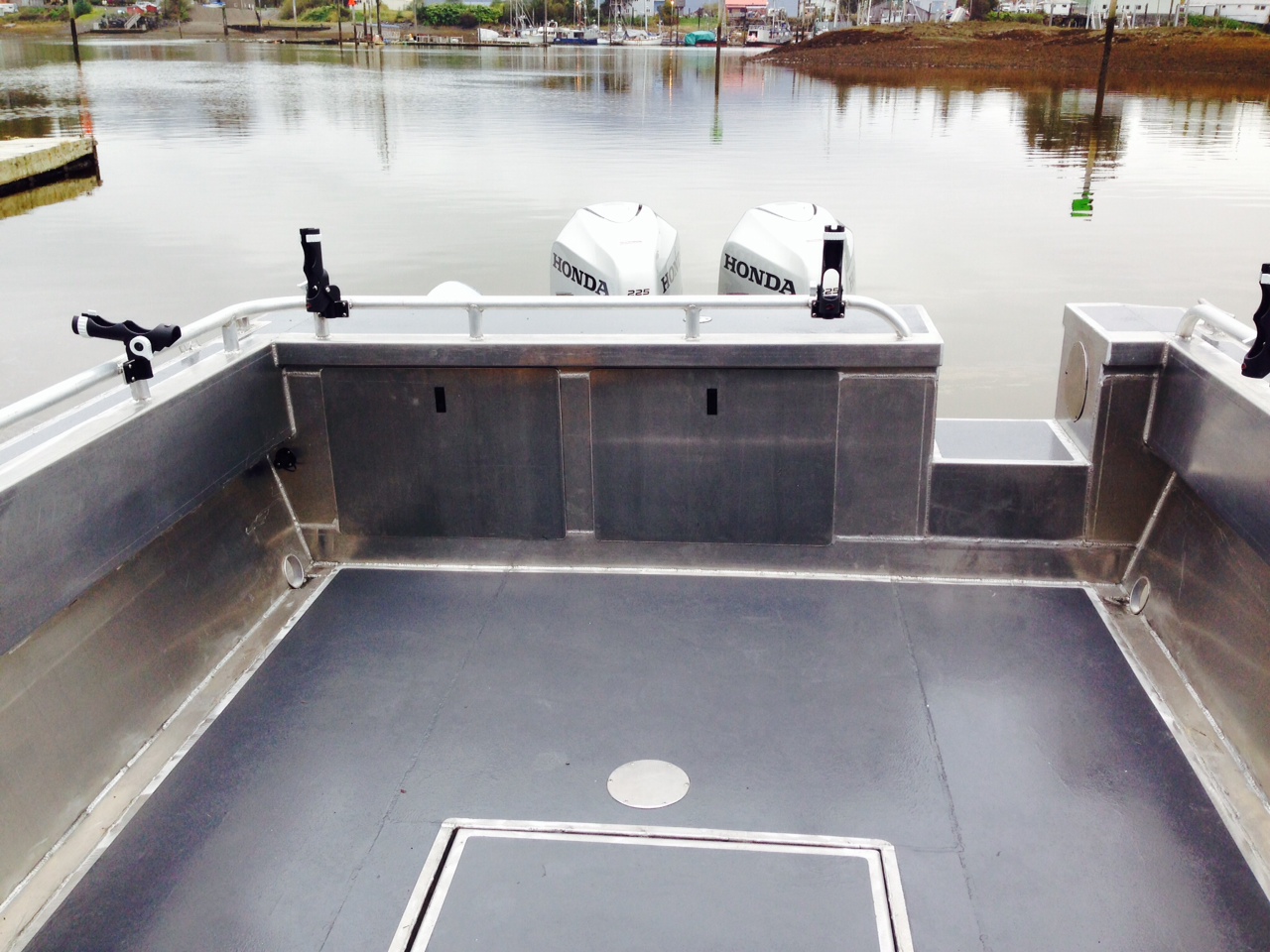

Multiple built in fishing rod holders.
Considerable hand rails, 6 cleats, zincs
Table with seats and back cushion; life ring; flare kit; anchor, chain, and line; extra line; boat hook, grapple hook with line; first aid kit,Zolatone paint and insulation.
Hydraulic steering
150 gallon fuel, 3 Full River batteries, fuel sniffer
12 volt battery switch with cross over
Lenco trim tabs
4 lifting points built into hull—handy for other things (difficult to see)
Johnson wash down pump with filter, second water pickup installed.
LED deck/fishing lights.
4 cabin lights, 2 twelve volt plugs, bilge pump, two roof gutters.
